Chapter 2 — Process Management and Security¶

Processes: The Security Unit of Execution¶

From a security standpoint, the process is the fundamental unit of isolation and trust in a modern operating system. When we ask "what can this program do?", we are really asking about the security context of its process: what credentials does it run with, what resources can it access, what system calls can it make? Understanding the process model deeply is essential to understanding how attacks are contained — and how they escape containment.

A process is a running instance of a program. It differs from the program itself (which is just bytes on disk) in that a process has allocated memory, a program counter tracking execution, an open file descriptor table, a set of credentials, and a position in the kernel's process hierarchy. A thread is an execution context within a process — multiple threads share the process's memory space and file descriptors but have independent stacks and CPU register states. From a security perspective, threads within the same process share the same credentials and address space, so compromising one thread effectively compromises all threads in the process.

The Process Control Block¶

The kernel tracks every process through a data structure called the Process Control Block (PCB), referred to as task_struct in the Linux kernel source. The PCB contains everything the kernel needs to manage and make security decisions about a process:

// Simplified view of security-relevant fields in Linux task_struct
struct task_struct {
    pid_t pid;                     // Process ID
    pid_t tgid;                    // Thread Group ID (= PID for main thread)
    struct task_struct *parent;    // Parent process pointer

    // Credentials (the key security context)
    const struct cred *cred;       // Effective credentials
    const struct cred *real_cred;  // Real credentials

    // Memory map
    struct mm_struct *mm;          // Virtual memory descriptor

    // Open files
    struct files_struct *files;    // File descriptor table

    // Signals
    struct signal_struct *signal;
    sigset_t blocked;              // Blocked signals

    // Namespaces (containers)
    struct nsproxy *nsproxy;

    // Seccomp filter
    struct seccomp seccomp;        // System call filter

    // Linux capabilities
    kernel_cap_t cap_effective;    // Currently effective capabilities
    kernel_cap_t cap_permitted;    // Maximum allowed capabilities
    kernel_cap_t cap_inheritable;  // Capabilities passed across exec
};

The cred structure is particularly critical — it contains the UID, GID, supplementary groups, and Linux capabilities that govern every access control decision made for this process.

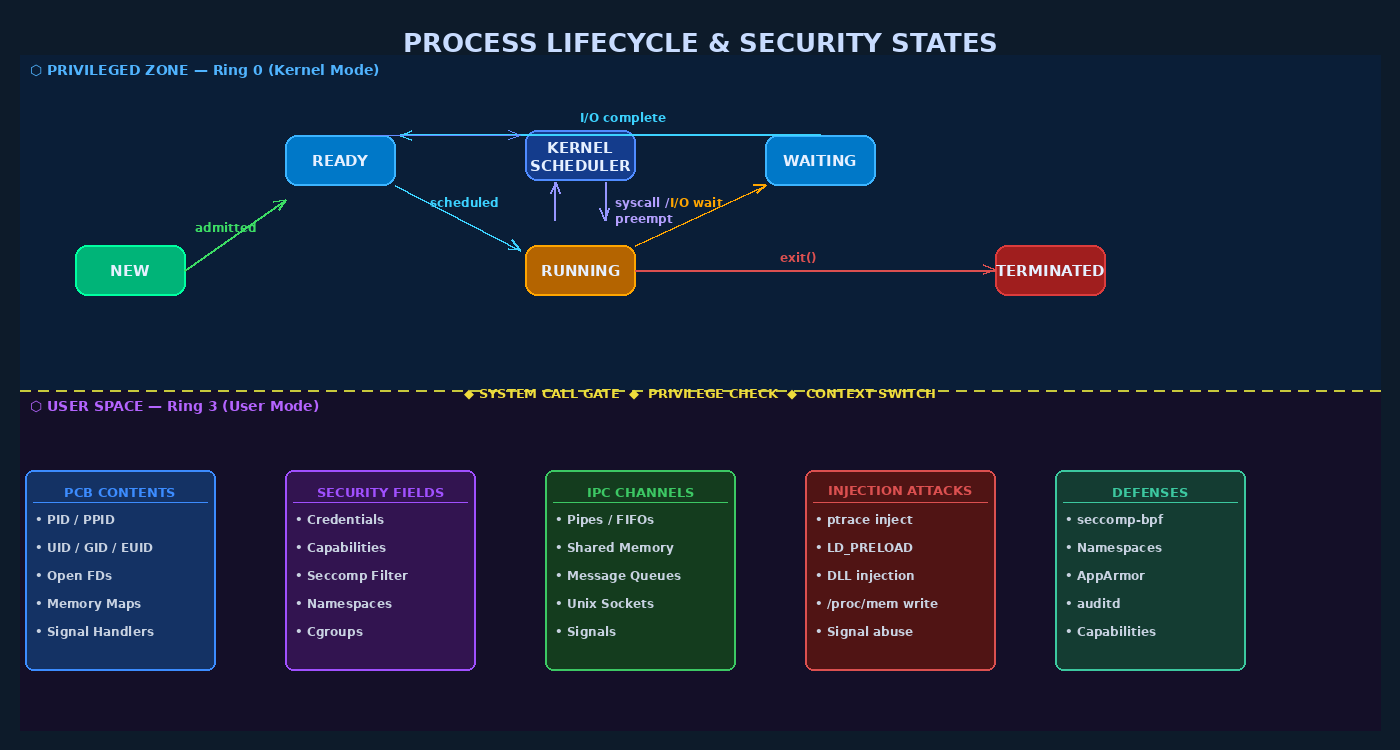

Process Lifecycle and Security Implications¶

Processes move through distinct states during their lifetime, and each transition has security significance:

The transition from READY to RUNNING happens through the context switch — a critical security operation where the kernel saves the CPU register state of one process and loads the state of another. The kernel must ensure that register values from process A cannot leak into process B's register file, preventing information disclosure.

Process Creation: fork() and exec()¶

In Unix, process creation follows a two-step model that has profound security implications.

The fork() System Call¶

fork() creates a new process by duplicating the calling process. The child process inherits: - A copy of the parent's virtual address space (copy-on-write) - The parent's open file descriptor table (same file descriptions) - The parent's credentials (UID, GID, capabilities) - The parent's signal handlers and signal mask - The parent's environment variables

#include <unistd.h>
#include <stdio.h>

int main() {
    // Before fork: process has open files, credentials, etc.
    int fd = open("/etc/shadow", O_RDONLY);  // will be inherited!

    pid_t pid = fork();
    if (pid == 0) {
        // Child process — inherits fd pointing to /etc/shadow
        // This is a security concern if child drops privileges
        // but forgets to close sensitive file descriptors
        execve("/usr/bin/untrusted_program", args, env);
        // untrusted_program now has fd open to /etc/shadow!
    }
}

Security Warning: File descriptor inheritance across fork/exec is a classic source of privilege leaks. Secure code should either set the FD_CLOEXEC flag on sensitive file descriptors (so they are automatically closed on exec) or explicitly close them before dropping privileges. The O_CLOEXEC flag to open() sets this automatically.

The exec() Family¶

After fork(), the child typically calls one of the exec() functions to replace its memory image with a new program. exec() preserves: - PID - Open file descriptors (unless FD_CLOEXEC is set) - UID/GID (unless the new executable is setuid) - Signal dispositions (handlers reset to defaults, ignores preserved)

When executing a setuid binary, the kernel changes the process's effective UID to the file owner's UID before execution begins — a critical security transition discussed in the next section.

Windows CreateProcess()¶

Windows uses a single CreateProcess() call that combines process creation and executable loading. Security-relevant parameters include:

• bInheritHandles — whether parent's inheritable handles are passed to child
• lpProcessAttributes / lpThreadAttributes — security descriptors for the new objects
• dwCreationFlags — process priority and creation flags
• An optional explicit security token to assign (via CreateProcessAsUser())

Credentials and Privilege¶

Unix UID/GID Model¶

Unix processes carry multiple credential identifiers:

The separation between RUID and EUID enables the setuid mechanism: a privileged program (e.g., passwd) can temporarily gain elevated privileges (EUID=0) to perform specific operations, then drop back to the user's RUID. The "saved set-UID" allows the process to toggle between the two.

# Find all setuid executables on the system (security audit)
find / -perm -4000 -type f 2>/dev/null

# Find all setgid executables
find / -perm -2000 -type f 2>/dev/null

# Check credentials of a running process
cat /proc/<PID>/status | grep -E "Uid|Gid|Cap"

The Danger of Setuid Binaries¶

Setuid binaries are a major attack surface. When a setuid root program (like sudo, pkexec, or a custom application) has a vulnerability, exploiting that vulnerability grants the attacker root access. Historical examples include:

• CVE-2021-4034 (PwnKit): A heap overflow in pkexec (a setuid root binary) allowed local privilege escalation to root on virtually all Linux distributions.
• CVE-2019-14287: A sudo bug allowed a user with sudo privileges restricted to a specific user ID to run commands as root by passing user ID -1 or 4294967295.

# Audit: list setuid binaries with their owners
find / -perm -4000 -type f 2>/dev/null -exec ls -la {} \;

# Expected legitimate setuid binaries
# -rwsr-xr-x root root /usr/bin/passwd
# -rwsr-xr-x root root /usr/bin/sudo
# -rwsr-xr-x root root /usr/bin/newgrp

Windows Access Tokens¶

In Windows, every process has an associated access token that identifies the user, group memberships, privilege list, and integrity level. Token types:

• Primary Token: Created at logon; assigned to a process
• Impersonation Token: Used by a thread to temporarily assume a client's security context (used in client/server applications)

Windows integrity levels (Vista and later) add a mandatory layer: Low (browser processes, sandboxes), Medium (normal user processes), High (elevated/administrator), System (OS processes), Untrusted. Objects have mandatory integrity labels; Low integrity processes cannot write to Medium integrity objects even if the DACL would allow it.

Process Isolation: Virtual Address Spaces¶

Each process runs in its own virtual address space — a private mapping of virtual addresses to physical memory pages managed by the kernel. Process A cannot read or write Process B's memory because:

1. Each process has its own page table — a mapping from virtual to physical addresses
2. Physical pages belonging to process A are not mapped into process B's page table
3. The CPU enforces page table boundaries in hardware

However, this isolation has intentional exceptions and unintended bypass techniques:

Intentional Exceptions: - ptrace() system call — allows debuggers to read/write another process's memory (requires appropriate privileges or parent-child relationship) - /proc/<PID>/mem — virtual file allowing authorized processes to read/write another process's memory - Shared memory (shmget, mmap with MAP_SHARED) — explicitly shared regions between cooperating processes

Unintended Bypasses: - Spectre/Meltdown (2018): CPU speculative execution caused physical memory (including kernel memory) to be loaded into CPU caches in ways that user-space processes could measure, breaking the assumption that virtual memory isolation protects confidentiality. - Row Hammer: A hardware vulnerability where rapidly reading from DRAM rows causes bit flips in adjacent rows, allowing a process to modify memory it does not own.

The /proc Filesystem¶

The /proc filesystem is a virtual filesystem that exposes kernel data structures as files. It is both a security intelligence source and an attack surface.

# Security investigation: what is process 1234 doing?
ls -la /proc/1234/fd/          # Open file descriptors
cat /proc/1234/maps            # Memory mappings with permissions
cat /proc/1234/status          # Credentials, capabilities
cat /proc/1234/cmdline         # Command line arguments
cat /proc/1234/environ         # Environment variables (may contain secrets!)
cat /proc/1234/net/tcp         # Network connections

# Security risk: environment variables often contain credentials
# strings /proc/<PID>/environ | grep -i "pass\|key\|secret\|token"

Security Warning: /proc/<PID>/environ can expose API keys, database passwords, and other secrets passed as environment variables. Production systems should never pass secrets as environment variables, and should restrict access to /proc entries of privileged processes.

Inter-Process Communication Security¶

IPC mechanisms allow processes to share data, creating communication channels that must be secured:

Process Injection Techniques¶

Process injection allows attackers to execute code within the context of another process, inheriting its credentials and memory:

Linux — ptrace injection:

# Conceptual: attach to process, write shellcode to memory, redirect execution
# ptrace(PTRACE_ATTACH, target_pid)
# ptrace(PTRACE_POKETEXT, target_pid, addr, shellcode)
# ptrace(PTRACE_SETREGS, target_pid, NULL, &regs_with_modified_rip)

Linux — LD_PRELOAD hijacking:

# Forces dynamic linker to load attacker's shared library FIRST
# Attacker can override any library function (e.g., getuid, strcmp)
LD_PRELOAD=/tmp/evil.so /usr/bin/sudo

Windows — DLL injection: A remote thread is created in the target process using CreateRemoteThread(), with its start address pointing to LoadLibrary() with the attacker's DLL path — causing the DLL to load and execute within the target process's context.

Defenses: Confining Processes¶

seccomp-bpf¶

seccomp (secure computing mode) allows a process to install a BPF filter that restricts which system calls it can make:

#include <sys/prctl.h>
#include <linux/seccomp.h>
#include <linux/filter.h>

// Modern browsers, container runtimes, and sandboxes use this
// to limit damage from compromised code
prctl(PR_SET_SECCOMP, SECCOMP_MODE_FILTER, &bpf_program);

Chrome, Firefox, systemd, and Docker all use seccomp filters to limit the system calls available to potentially dangerous code.

Linux Namespaces¶

Namespaces allow the kernel to present a process with an isolated view of system resources:

# Run a process in an isolated network namespace (no network access)
ip netns add isolated
ip netns exec isolated /bin/bash
# Inside: cannot reach external network

Monitoring with auditd¶

# Audit setuid execution
auditctl -a always,exit -F arch=b64 -S execve -F euid=0 -F auid>=1000 -k setuid_exec

# Audit ptrace usage (potential injection)
auditctl -a always,exit -F arch=b64 -S ptrace -k ptrace_audit

# View audit log
ausearch -k setuid_exec | aureport -x

Key Terms¶

Review Questions¶

1. Conceptual: Explain why file descriptor inheritance across fork() and exec() is a security concern. What is the FD_CLOEXEC flag and how does it mitigate this risk?

2. Lab: Find all setuid root binaries on your system. Choose one (not sudo or passwd) and research its purpose. Explain what access it requires root for and what would happen if it had a buffer overflow vulnerability.

3. Conceptual: A web server process runs as www-data (RUID and EUID both equal to www-data's UID). An attacker exploits a remote code execution vulnerability in the web server. What can the attacker do with www-data privileges? What can they NOT do?

4. Lab: Read /proc/<your_shell_PID>/maps and identify each memory region. Classify each region by type (text, data, heap, stack, library, vDSO) and note the read/write/execute permissions.

5. Conceptual: Explain the difference between a Linux namespace and a seccomp filter. How do they complement each other in a container security model?

6. Analysis: The LD_PRELOAD injection technique requires the attacker to set an environment variable before launching the target program. Why does this technique NOT work against setuid binaries? (Hint: look up how the dynamic linker handles LD_PRELOAD for setuid executables.)

7. Lab: Use strace -p <PID> to attach to a running process. What system calls do you observe? What security-sensitive operations can you see? What does this imply about the security of strace itself?

8. Conceptual: Spectre and Meltdown broke the assumption that virtual memory isolation is absolute. Explain the mechanism (speculative execution and cache timing) at a high level, and describe two OS-level mitigations that were deployed.

9. Lab: Run cat /proc/self/status | grep Cap and decode the capability bitmasks using capsh --decode=<hex>. What capabilities does your current shell process have?

10. Analysis: Compare process isolation in a Linux container (namespaces + cgroups + seccomp) versus a virtual machine. In what scenarios might a container's isolation be insufficient and a VM required?

Further Reading¶

• Kerrisk, M. (2010). The Linux Programming Interface. No Starch Press. Chapters 25–28 (process creation), 36–37 (process credentials), 43–46 (IPC).
• Love, R. (2010). Linux Kernel Development, 3rd ed. Addison-Wesley. Chapter 3 (process management) — covers task_struct in depth.
• Kocher, P. et al. (2019). Spectre Attacks: Exploiting Speculative Execution. IEEE S&P 2019. — Original Spectre paper describing process isolation bypass.
• Google Project Zero. A Deep Dive into Linux Namespaces. projectzero.blogspot.com — Analysis of namespace security boundaries and escape techniques.
• Anderson, J. (2019). An Introduction to Linux Audit System (auditd). Red Hat Security Blog. — Practical guide to process-level security monitoring.
