Chapter 8 — Sandboxing, Isolation, and Containerization Security¶

The principle of sandboxing is simple: accept that code may be compromised, and limit the damage it can cause. Instead of trying to prevent all vulnerabilities, a sandbox restricts what a compromised process can see, do, and communicate with. This chapter surveys the sandboxing landscape from the crude isolation of chroot to the hardware-enforced isolation of virtual machines, with special attention to the Linux primitives that underpin container technology.

8.1 The Sandboxing Principle¶

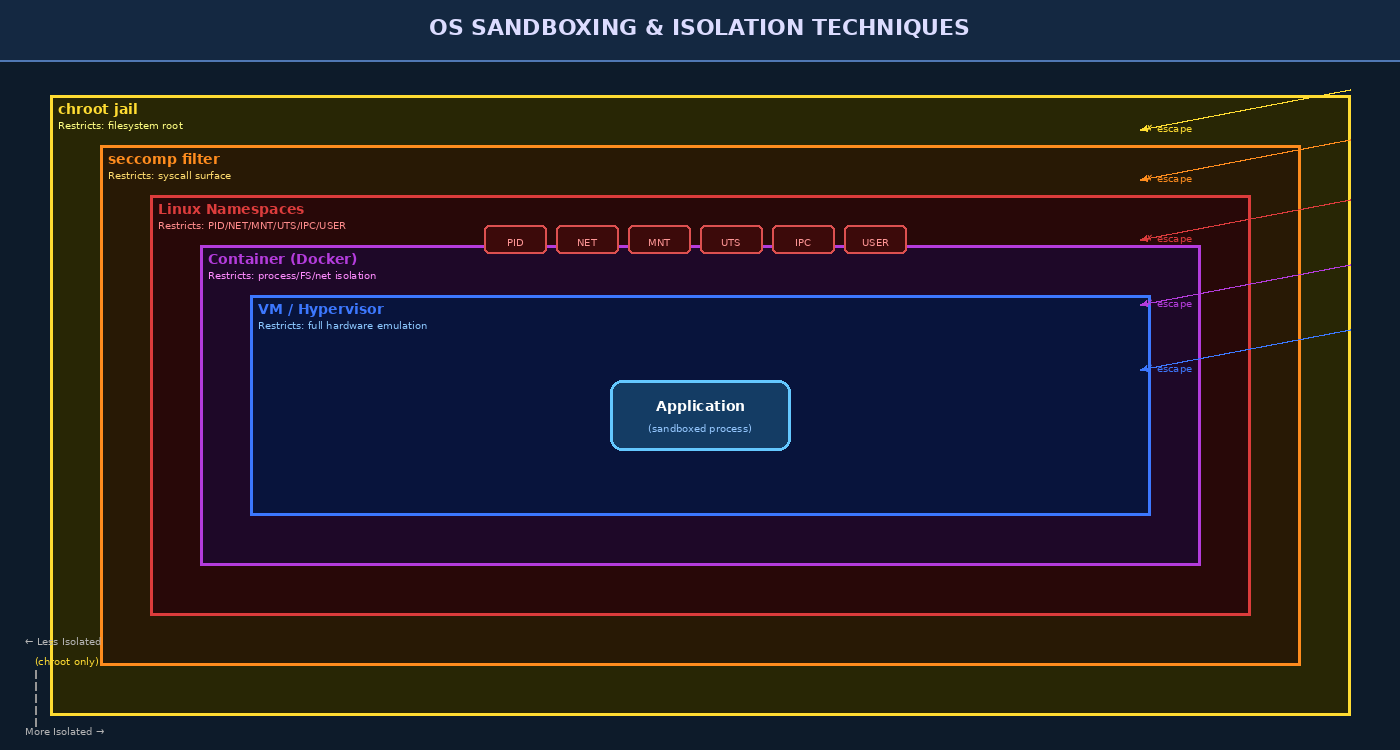

A sandbox imposes a confinement boundary around a process. When the process is compromised — through a vulnerability, malicious input, or supply-chain attack — the attacker's capabilities are limited to what the sandbox permits. Effective sandboxes enforce:

1. Filesystem isolation — what files the process can see/write
2. Network isolation — what network interfaces and hosts it can reach
3. Process isolation — what other processes it can see, signal, or ptrace
4. Syscall restriction — which kernel interfaces it may use
5. Resource limits — CPU/memory/I/O caps preventing DoS

No single mechanism provides all five. Modern container runtimes compose multiple primitives to achieve defense-in-depth sandboxing.

8.2 chroot — The Original Jail¶

chroot (change root) is the oldest Unix isolation mechanism. It relocates a process's view of the filesystem root to a specified directory. The process and its children cannot traverse above this new root using normal path operations.

# Create a minimal chroot environment
mkdir -p /jails/webroot/{bin,lib,lib64,usr,etc,dev}

# Copy required binaries and libraries
cp /bin/bash /jails/webroot/bin/
ldd /bin/bash | awk '{print $3}' | xargs -I{} cp {} /jails/webroot/lib64/

# Enter the chroot
sudo chroot /jails/webroot /bin/bash
# Now: ls / shows only the jail contents

8.2.1 chroot Escape Techniques¶

chroot provides extremely weak isolation and is not considered a security boundary on its own:

1. Requires root inside: Any process with CAP_SYS_CHROOT can call chroot() again and escape.
2. Open file descriptor escape: A process holding an open file descriptor to a directory outside the chroot can use that fd to navigate out with fchdir() + chroot(".").
3. Kernel exploits: Any kernel vulnerability allowing arbitrary memory write immediately escapes the chroot.
4. Mount escapes: With CAP_SYS_ADMIN, a process can mount /proc and use it to access host filesystems.

// Classic chroot escape (requires root inside jail)
int dir_fd = open("/", O_RDONLY);   // fd to jail root
mkdir("tmp_escape", 0755);
chroot("tmp_escape");               // chroot into subdirectory
fchdir(dir_fd);                     // navigate via pre-opened fd
for (int i = 0; i < 40; i++) chdir(".."); // walk up past original jail
chroot(".");                        // new root = real filesystem root

Key Concept: chroot is a debugging and administrative tool, not a security boundary. Never rely on chroot alone to contain a potentially malicious process. Use it as the outermost layer with additional restrictions.

8.3 Linux Namespaces¶

Namespaces are the core building block of container isolation. Each namespace type virtualizes a different aspect of the kernel's global state, giving processes an isolated view.

8.3.1 Namespace Commands¶

# Create new namespaces interactively (requires root or user namespace support)
unshare --pid --fork --mount-proc /bin/bash
# PID 1 inside is now the bash shell

# List namespaces for a process
ls -la /proc/1234/ns/

# Enter a specific container's namespaces
nsenter --target 1234 --mount --uts --ipc --net --pid -- /bin/bash

# Create unprivileged user namespace (no root required)
unshare --user --map-root-user /bin/bash
id    # shows root inside, but no real privileges outside

8.3.2 USER Namespaces and Unprivileged Containers¶

The USER namespace allows a non-root user to appear as root within the namespace. UID 0 inside the namespace maps to an unprivileged UID (e.g., 100000) on the host:

# /etc/subuid and /etc/subgid define the mapping range
cat /etc/subuid
# john:100000:65536  (john gets UIDs 100000-165535 for namespace mapping)

This enables rootless containers (Podman's default mode) where no privileged daemon is required.

8.4 Linux Control Groups (cgroups)¶

cgroups impose resource limits on processes and their children, preventing a sandboxed process from consuming all host resources (a denial-of-service attack vector):

# cgroups v2: create a group and set limits
mkdir /sys/fs/cgroup/myapp
echo "200000 1000000" > /sys/fs/cgroup/myapp/cpu.max   # 20% of one CPU
echo $((512 * 1024 * 1024)) > /sys/fs/cgroup/myapp/memory.max  # 512MB
echo "10485760 1048576" > /sys/fs/cgroup/myapp/io.max  # I/O limit

# Assign a process to the group
echo $PID > /sys/fs/cgroup/myapp/cgroup.procs

Key cgroup controllers: - cpu: CPU time quotas and weights - memory: RSS/swap limits; OOM kill when exceeded - io: Block I/O read/write bandwidth and IOPS - pids: Maximum number of processes in the cgroup - net_cls: Tag packets for network traffic control

8.5 seccomp — Syscall Filtering¶

seccomp (Secure Computing Mode) allows a process to install a filter that restricts which system calls it may make. In seccomp-bpf mode, a BPF (Berkeley Packet Filter) program inspects each syscall number and arguments, returning ALLOW, DENY, KILL, or LOG.

#include <seccomp.h>

// Whitelist approach: allow only specific syscalls, kill on others
scmp_filter_ctx ctx = seccomp_init(SCMP_ACT_KILL_PROCESS);

seccomp_rule_add(ctx, SCMP_ACT_ALLOW, SCMP_SYS(read), 0);
seccomp_rule_add(ctx, SCMP_ACT_ALLOW, SCMP_SYS(write), 0);
seccomp_rule_add(ctx, SCMP_ACT_ALLOW, SCMP_SYS(exit_group), 0);
seccomp_rule_add(ctx, SCMP_ACT_ALLOW, SCMP_SYS(fstat), 0);

seccomp_load(ctx);
// From here: any syscall not in the list kills the process

Docker's default seccomp profile blocks 44+ dangerous syscalls including: - keyctl, add_key, request_key — kernel keyring (prevents key theft) - ptrace — process tracing (prevents container escape via ptrace) - reboot, kexec_load — host rebooting - mount, umount2 — filesystem mounts (without CAP_SYS_ADMIN) - clone with CLONE_NEWUSER — user namespace creation - acct — process accounting manipulation

# Run container with custom seccomp profile
docker run --security-opt seccomp=/path/to/profile.json nginx

# Run without seccomp (dangerous — only for debugging)
docker run --security-opt seccomp=unconfined nginx

8.6 Linux Capabilities in Sandboxing¶

Containers drop almost all capabilities and add back only those required:

# Docker: drop all capabilities, add only net_bind_service
docker run --cap-drop=ALL --cap-add=NET_BIND_SERVICE nginx

# Inspect capabilities of a running process
cat /proc/$(pgrep nginx)/status | grep Cap
# CapPrm: 0000000000000400   (only CAP_NET_BIND_SERVICE)
# CapEff: 0000000000000400
# CapBnd: 0000000000000400

# Decode capability bitmask
capsh --decode=0000000000000400

Minimal capability sets reduce the blast radius if the containerized process is compromised.

8.7 Container Security (Docker)¶

Docker combines namespaces + cgroups + seccomp + capabilities into a usable container runtime:

Container = namespaces + cgroups + seccomp + capabilities (+ optional AppArmor/SELinux)

8.7.1 Container Escape Vulnerabilities¶

CVE-2019-5736 (runc vulnerability): A running container could overwrite the host's runc binary (the container runtime) by exploiting a race condition in /proc/self/exe. This allowed a malicious container to execute arbitrary code on the host as root.

# Check your runc version (patched version is >= 1.0.0-rc7)
runc --version
docker version

Privileged Container Escape: Running docker run --privileged grants the container all capabilities and disables seccomp/AppArmor. From a privileged container:

# Mount the host filesystem
mkdir /mnt/host
mount /dev/sda1 /mnt/host
# Now write to host files, add SSH keys, modify cron, etc.

# Alternatively: use nsenter to join host namespaces
nsenter -t 1 -m -u -i -n -p -- /bin/bash
# Now running in host namespaces — full host access

8.7.2 Docker Security Best Practices¶

# Use non-root user in Dockerfile
RUN addgroup --system --gid 1001 appgroup && \
    adduser --system --uid 1001 --gid 1001 appuser
USER appuser

# Read-only root filesystem
# docker run --read-only --tmpfs /tmp nginx

# Docker Bench Security (automated audit)
docker run -it --net host --pid host --userns host --cap-add audit_control \
  -v /var/lib:/var/lib -v /var/run/docker.sock:/var/run/docker.sock \
  docker/docker-bench-security

# Scan image for vulnerabilities
docker scout cves nginx:latest
trivy image nginx:latest

Security hardening checklist:

8.8 Kubernetes Security Context¶

In Kubernetes, security settings are applied per-pod and per-container:

apiVersion: v1
kind: Pod
spec:
  securityContext:
    runAsNonRoot: true
    runAsUser: 1000
    fsGroup: 2000
    seccompProfile:
      type: RuntimeDefault
  containers:
  - name: webapp
    securityContext:
      allowPrivilegeEscalation: false
      readOnlyRootFilesystem: true
      capabilities:
        drop: ["ALL"]
        add: ["NET_BIND_SERVICE"]

Pod Security Standards (replacement for deprecated PSP): - Privileged: No restrictions - Baseline: Prevents known privilege escalations - Restricted: Heavily restricted; follows hardening best practices

8.9 Browser Sandboxing¶

Google Chrome's multi-process sandbox demonstrates sandboxing in a complex application:

• Browser Process: Manages UI, tabs, network — runs with normal user privileges
• Renderer Process: Executes JavaScript and HTML rendering — runs in a highly restricted sandbox using seccomp-bpf (Linux), win32k lockdown (Windows), or Seatbelt (macOS)
• GPU Process: Hardware acceleration — moderately sandboxed
• Plugin Process: Flash/PDF — heavily sandboxed

The renderer's sandbox allows only a tiny number of syscalls. Even if an attacker achieves code execution in the renderer via a JavaScript vulnerability, they face a second barrier: escaping the renderer sandbox to reach the OS (a "full chain" browser exploit requires both a renderer RCE and a sandbox escape).

8.10 Windows Sandbox Technologies¶

AppContainer¶

AppContainer is Windows 8+'s primary application sandbox used by UWP apps and modern Edge:

• Unique AppContainer SID per application
• Isolation from other applications' files, registry, and network resources
• Capabilities must be explicitly declared in app manifest
• Cannot access most Win32 APIs directly

Windows Sandbox¶

Windows Sandbox (Windows 10 Pro/Enterprise) creates a lightweight VM-based sandbox for running untrusted applications, using the Hyper-V hypervisor for hardware-enforced isolation:

# Enable Windows Sandbox
Enable-WindowsOptionalFeature -Online -FeatureName "Containers-DisposableClientVM"

# Or via Windows Features GUI
# The sandbox is disposable — all changes are lost on close

Key Terms¶

Review Questions¶

1. Conceptual: Describe the five dimensions of sandboxing (filesystem, network, process, syscall, resource limits). For each dimension, identify which Linux kernel mechanism provides isolation.

2. Architecture: Explain why chroot alone is not a security boundary. Demonstrate two different chroot escape techniques, explaining what preconditions each requires.

3. Lab (Namespaces): Using unshare, create a shell session with new PID, UTS, and mount namespaces. Inside this session: (a) verify PID 1 is your shell, (b) change the hostname, (c) mount a tmpfs at /tmp/sandbox. Verify these changes are invisible from the host.

4. seccomp Lab: Write a C program using libseccomp that allows only the syscalls needed to read a file and print its contents to stdout, then calls seccomp_load(). What happens when the program tries to open a network socket after seccomp is loaded?

5. Docker Security: Run docker run --privileged ubuntu bash and demonstrate how you can mount the host filesystem and read a file from it. Then run the same container with --cap-drop=ALL --read-only and show which operations are now blocked.

6. CVE Analysis: Research CVE-2019-5736. Explain the race condition in runc that enabled the escape, what an attacker needed to do to trigger it, and what the patch changed to prevent it.

7. Comparison: Compare Docker containers vs. VMs (Hyper-V/KVM) in terms of isolation strength, performance overhead, and attack surface. When would you choose a VM over a container for running untrusted code?

8. Browser Sandboxing: Describe Chrome's multi-process sandbox model. What Linux kernel mechanisms does the Chrome renderer sandbox use on Linux? Why does a full browser exploit require both a renderer RCE and a sandbox escape?

9. Kubernetes Lab: Write a Kubernetes Pod spec that enforces: non-root user, read-only root filesystem, no privilege escalation, dropped ALL capabilities, and a RuntimeDefault seccomp profile. Deploy it and verify the constraints are active with kubectl exec.

10. Design Exercise: You are deploying a web scraper that must make outbound HTTP requests but should never be able to write to the host filesystem, see other containers' processes, or consume more than 1 CPU core. Design a Docker run command (or Compose file) with every security flag you would apply, explaining the rationale for each.

Further Reading¶

1. Kerrisk, M. (2013). "Namespaces in operation." LWN.net series. — Definitive namespace reference (https://lwn.net/Articles/531114/).
2. Docker Inc. (2023). Docker Security Documentation. https://docs.docker.com/engine/security/ — Official container security guide.
3. Bui, T. (2015). "Analysis of Docker Security." arXiv:1501.02967. — Academic analysis of container attack surfaces.
4. Google Project Zero. (2019). "A deeper look at CVE-2019-5736." Project Zero Blog. — In-depth runc escape analysis.
5. NIST SP 800-190. (2017). Application Container Security Guide. — NIST guidance for container deployments.
